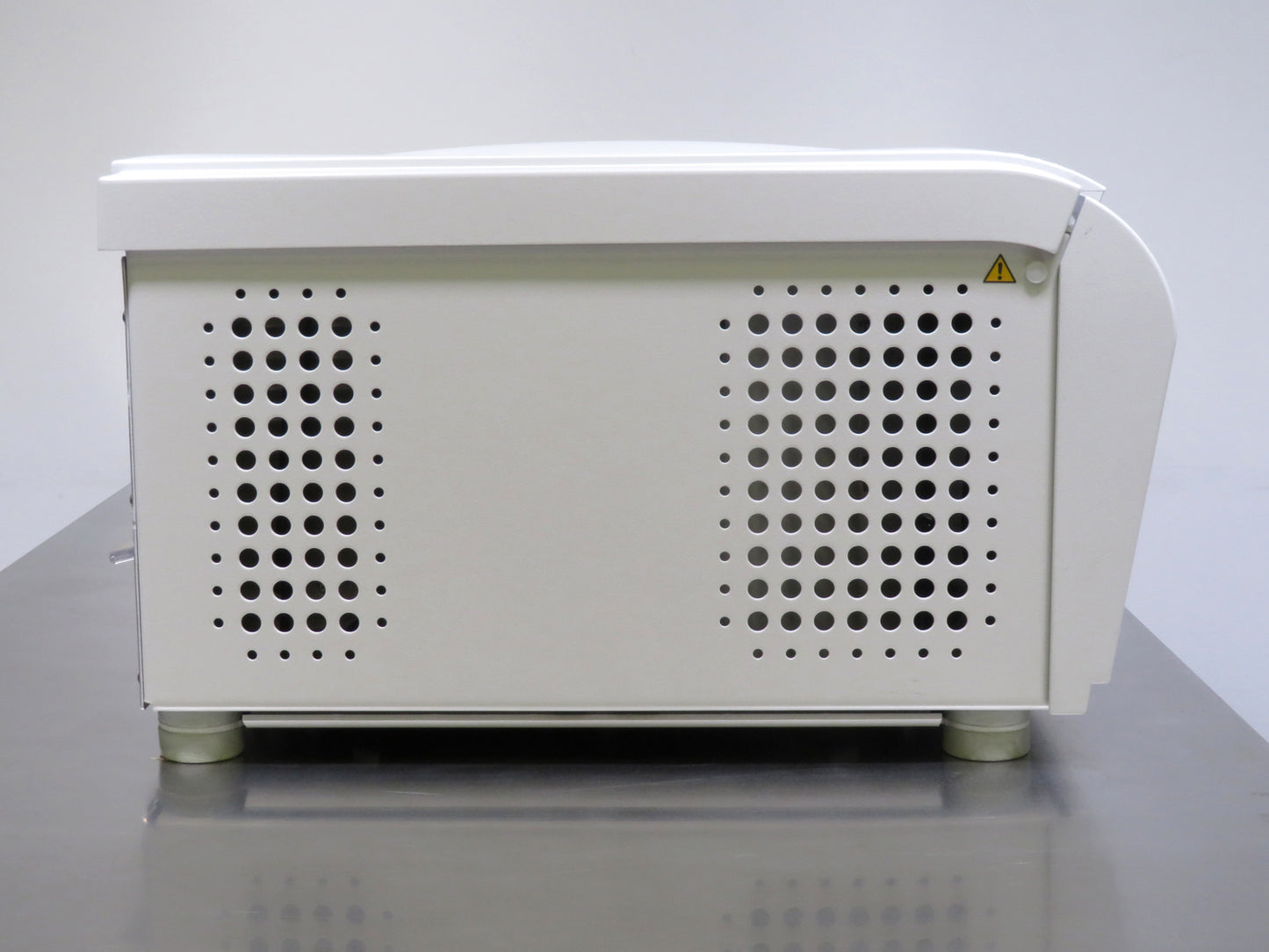

VWR Mega Star 1.6R Refrigerated Centrifuge

Net 30 Terms and Financing Available

Our Price: $6,395.00

Price with Selected Options: $6,395.00

Condition: Fully Recertified and Tested to Perform at Manufacturer Specifications
Warranty: 180-Day Full Parts and Labor (Click for Info)
Typically Ships Within: 1 to 3 Business Days
Included Documentation: NIST Centrifuge Calibration and Preventative Maintenance Report

Request a Formal Quote

Quantity in Stock:1

Product Code: VWR-MS16R

		Please Select an Option Below
Select Included Option*:

Qty:

Description

Recertification Protocol

Technical Specification Sheet

VWR Mega Star 1.6R Refrigerated Centrifuge

Maximum Speed
15,200 RPM (25,830 x g RCF)

Maximum Capacity
4 x 400mL

Temperature Range
-10°C to 40°C

Features

Refrigerated design enhances sample security and reproducibility across workflows
Intuitive keypad controls provide easy setup and clear access to operating parameters
Accessible rotor chamber allows for fast cleaning and improved laboratory hygiene
Compact benchtop design maximizes workspace without sacrificing performance
Ergonomic height and curved design simplify sample loading and unloading
Optimized for tissue culture and general-purpose separation workflows
Energy-efficient operation reduces power consumption during standard protocols
Designed to streamline workflow transitions and minimize interruptions

The VWR Mega Star 1.6R Refrigerated Centrifuge is a compact benchtop system designed to support routine centrifugation, tissue culture workflows, and general-purpose separation with consistent, reproducible results. Its refrigerated design enhances sample security, while intuitive keypad controls and a user-friendly interface simplify setup and daily operation. Built for versatility, this centrifuge integrates seamlessly into laboratory environments where dependable performance and efficient workflows are essential.

Engineered with the Auto-Lock rotor system, the Mega Star 1.6R enables quick, simple rotor installation and exchange, reducing downtime between applications. The accessible rotor chamber supports fast cleaning and promotes a healthier working environment. With configurations tailored for a variety of sample vessels, the system is well-suited for a number of standard research applications.

Its ergonomic, space-saving design optimizes bench space without limiting functionality. The curved profile and accessible height make loading and unloading samples straightforward, while also simplifying routine maintenance. In addition, the system is energy efficient, offering significant reductions in energy consumption during common protocols. Altogether, the Mega Star 1.6R delivers a balance of performance, convenience, and efficiency for modern laboratory workflows.

All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.

INCLUDED:
The VWR Mega Star 1.6R Refrigerated Centrifuge includes:

> Rotor Selected Above
> NIST Centrifuge Calibration and Preventative Maintenance Report
> Operator's Guide
> Power Cord
> Full 180 Day Parts and Labor Warranty

VWR Mega Star 1.6R Refrigerated Centrifuge Specifications

Maximuim Speed	15,200 RPM
Minimum Speed	300 RPM
Maximum RCF	25,830 x g
Maximum Capacity	4 x 400ml
Temperature Range	-10°C to 40°C
Timer	Up to 9 hours 59 minutes, and continuous run
Accleration Rates	9
Deceleration Rates	10
Noise Level at Max Speed	< 68 dB (A)
Dimensions (W x D x H)	24.6 x 33.6 x 14.2 in. (62.5 x 85.5 x 36.1 cm)
Weight	202.8 lbs. (92 kg)
Electrical Requirements	120V, 60Hz, 11A, 1350W

Click Here to Expand Rotor Specifications

TX-200 Rotor Specs
Capacity	4 x 180 mL bottles
Max RPM	5,500
Max RCF	5,580 x g

Fiberlite F-15-6x100Y Rotor Specs
Capacity	6 x 100 mL Tubes
Max RPM	13,000
Max RCF	18,516 x g

M-20 Microplate Rotor Specs
Capacity	2 x 3 Standard or 2 x 1 Deepwell Plates
Max RPM	4,000
Max RCF	2,272 x g

TX-400 Rotor Specs
Capacity	4 x 400 mL Bottles
Max RPM	4,700 RPM
Max RCF	4,149 x g

Downloads

Technical Specification Download

Operator's Manual Download

Request a Formal Quote

Centrifuge Inspection and Recertification Checklist

Confirm the power supply output voltages match specified requirements for stable distribution to all internal components
Measure and verify voltages at PCB test points to ensure accurate power delivery and circuit integrity
Confirm rotor compatibility with the centrifuge model and check that rotor detection systems recognize the rotor type
Inspect the exterior for any cosmetic or structural damage that could affect performance or safety
Check the door mechanism alignment to ensure secure and smooth opening and closing
Inspect and replace the gas strut with an OEM part to maintain proper door support and safety
Examine the rotor chamber bowl for dents or damage and replace as needed to ensure safe operation
Replace and confirm full functionality of all lid lock switches to maintain secure closure
Inspect and lubricate the door lock mechanism, applying grease to the lid lock rail for smooth operation
Test compressor functionality (if applicable) to ensure proper operation and consistent temperature control
Conduct an 8-12 hour cycle test to validate consistent performance over prolonged use
Confirm rotor motor stability, check for unusual noise, and assess mechanical integrity during operation
Inspect the condensation drain and clear any clogs to prevent moisture buildup in the rotor chamber
Verify RPM accuracy using an NIST-traceable tachometer and perform calibration as necessary
Check the centrifuge error log to ensure zero recorded issues, confirming system reliability

Technician Inspection and Recertification Checklist: Centrifuges

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Confirm power supply output voltages match specified requirements	Completed
Measure and verify voltages at PCB test points for accuracy	Completed
Confirm rotor compatibility and detection for proper identification	Completed
Inspect exterior for cosmetic or structural damage	Completed
Check door mechanism alignment for secure opening and closing	Completed
Inspect and replace gas strut with OEM part as needed	Completed
Examine rotor chamber for dents or damage and replace if necessary	Completed
Replace and confirm functionality of all lid lock switches	Completed
Lubricate door lock mechanism and lid lock rail for smooth operation	Completed
Test compressor (if applicable) for proper operation and cooling	Completed
Run 8-12 hour cycle test to ensure consistent performance	Completed
Check rotor motor for stability, noise, and integrity	Completed
Inspect and clear condensation drain to prevent buildup	Completed
Verify RPM accuracy with NIST traceable tachometer and calibrate	Completed
Check centrifuge error log for zero recorded issues	Completed
