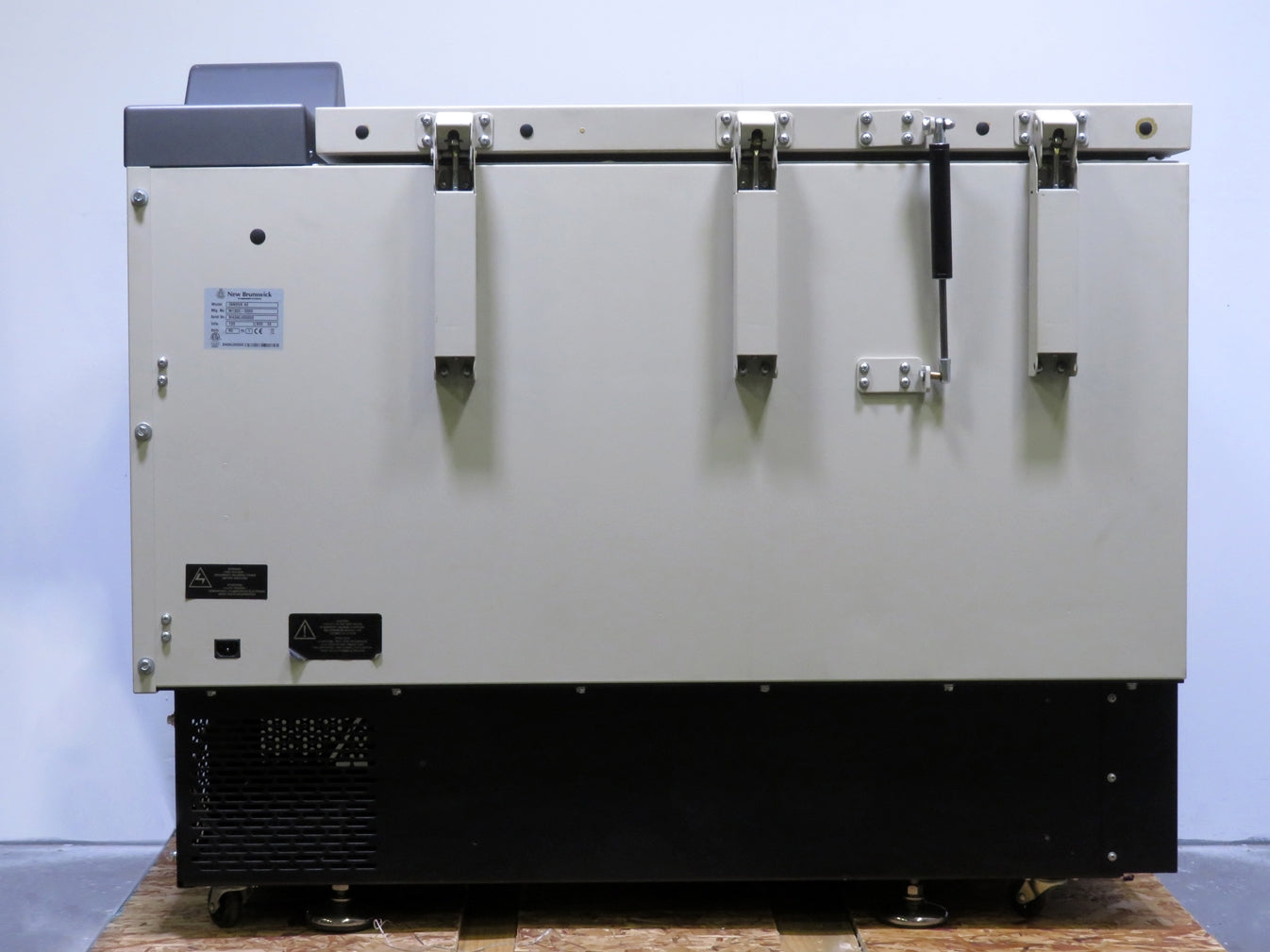

New Brunswick Innova 43 Incubator Shaker
Speed Range
25 to 500 RPM
Temperature Range
Ambient +5C to 80C
Temperature Uniformity
± 0.25C at 37C
- Triple-eccentric counterbalanced drive ensures smooth, stable operation under heavy loads
- 9 permanently lubricated ball bearings and Poly-V belt support high durability and quiet performance
- Self-calibrating, solid-state brushless DC motor provides reliable long-term operation
- Low watt-density resistance heaters maintain consistent chamber conditions
- Built-in safety thermostat cut-out protects samples from overheating
- Proportional/Integral microprocessor control for precise agitation management
- Audible and visual alarms provide real-time alerts for system deviations
The New Brunswick Scientific Innova 43 Incubator Shaker is in excellent condition. The Innova 43 Incubator Shaker is the perfect choice for handling large quantities or large volumes with precision and ease. The cast iron triple-eccentric counterbalanced drive is specifically designed to support high-speed applications and heavy workloads. A Proportional/Integral microprocessor controls allow for uniform motion and accurate regulation of shaking speed.
Audible and visual alarms come standard with built-in timer. Shaking speeds from 25 to 500 RPM with 1 RPM speed control.
All of our equipment will be fully tested to perform at factory specifications before being shipped.
The New Brunswick Innova 43 Incubator Shaker includes:
- > 18 x 30 Platform
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
New Brunswick Innova 43 Incubator Shaker Specifications
|
Speed
|
25 to 500 RPM
|
|
Indication
|
Displayed in 1 rpm increments
|
|
Alarm signal
|
± 5 RPM
|
|
Drive mechanism
|
Triple-eccentric counterbalanced drive
9 permanently lubricated ball bearings
Poly-V belt
Self-calibrating
Solid-state brushless DC motor
|
|
Heaters
|
Low
watt-density resistance heaters
High
temperature safety thermostat cut-out
|
|
Temperature range
|
Ambient
+5C to 80C
|
|
Alarms
|
Audible
and visual alarms
|
|
Temperature uniformity
|
± 0.25C at 37C
|
|
Timer
|
0.01 to 99.59 h, continuous
|
|
Motor
|
Solid
state, DC brushless motor
|
|
Platform size
|
76 x 46 cm (30 x 18 in)
|
|
Dimensions (W x D x H)
|
115.6 x 81.3 x 103.1cm (45.5 x 20 x 40.6 in.)
|
- Examine the chamber glass for cracks or chips, replacing it as needed to maintain structural integrity.
- Inspect door seals for signs of wear or damage, replacing them to ensure a tight seal.
- Check the display for brightness and clarity, replacing any dim or dead pixels to maintain optimal visibility.
- Test all buttons to confirm full functionality and consistent responsiveness.
- Replace all platform assembly bearings to ensure smooth and reliable motion.
- Inspect the drive belt for wear, replacing it if torn or cracked to maintain performance.
- Examine all wiring for frays, tears, or breakages, addressing any issues for electrical safety.
- Verify each PCB test point, replacing any malfunctioning components to ensure system reliability.
- Check drive belt tension to confirm correct alignment and function.
- Confirm the compressor’s operation, cleaning condenser filter and fins for efficient cooling.
- Calibrate internal temperature accuracy using an NIST-traceable temperature probe.
- Measure and calibrate platform RPMs with an NIST-traceable tachometer to ensure precision.
- Conduct a final cosmetic inspection to verify all surfaces meet appearance standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment
| Task |
Completed? |
Remarks? |
| Examine chamber glass for cracks or chips, replace as needed | Completed | |
| Inspect door seals for wear, replace to ensure tight seal | Completed | |
| Check display brightness, replace dim or dead pixels | Completed | |
| Test all buttons for full functionality and responsiveness | Completed | |
| Replace platform assembly bearings for reliable motion | Completed | |
| Inspect drive belt for wear, replace if torn or cracked | Completed | |
| Examine wiring for frays or breakages, repair as needed | Completed | |
| Verify PCB test points, replace faulty components | Completed | |
| Check drive belt tension for proper alignment | Completed | |
| Confirm compressor functionality, clean filter and fins | Completed | |
| Calibrate internal temperature with NIST probe | Completed | |
| Calibrate platform RPM with NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection for appearance standards | Completed | |
To View More of Our Recertification Protocol Click Here
|
|
|
