Stock Notification!

The Hermle Z216 MK Refrigerated Centrifuge you were interested in is currently unavailable, but we have a great alternative for you!

Our Price: $1,695.00

Condition: Fully Recertified and Tested to Perform at Manufacturer Specifications
Warranty: 180-Day Full Parts and Labor (Click for Info)
Typically Ships Within: 3 to 5 Business Days
Included Documentation: NIST Centrifuge Calibration and Preventative Maintenance Report

Request a Formal Quote

Quantity in Stock:1

Product Code: HM-Z207H

Qty:

Description

Recertification Protocol

Technical Specification Sheet

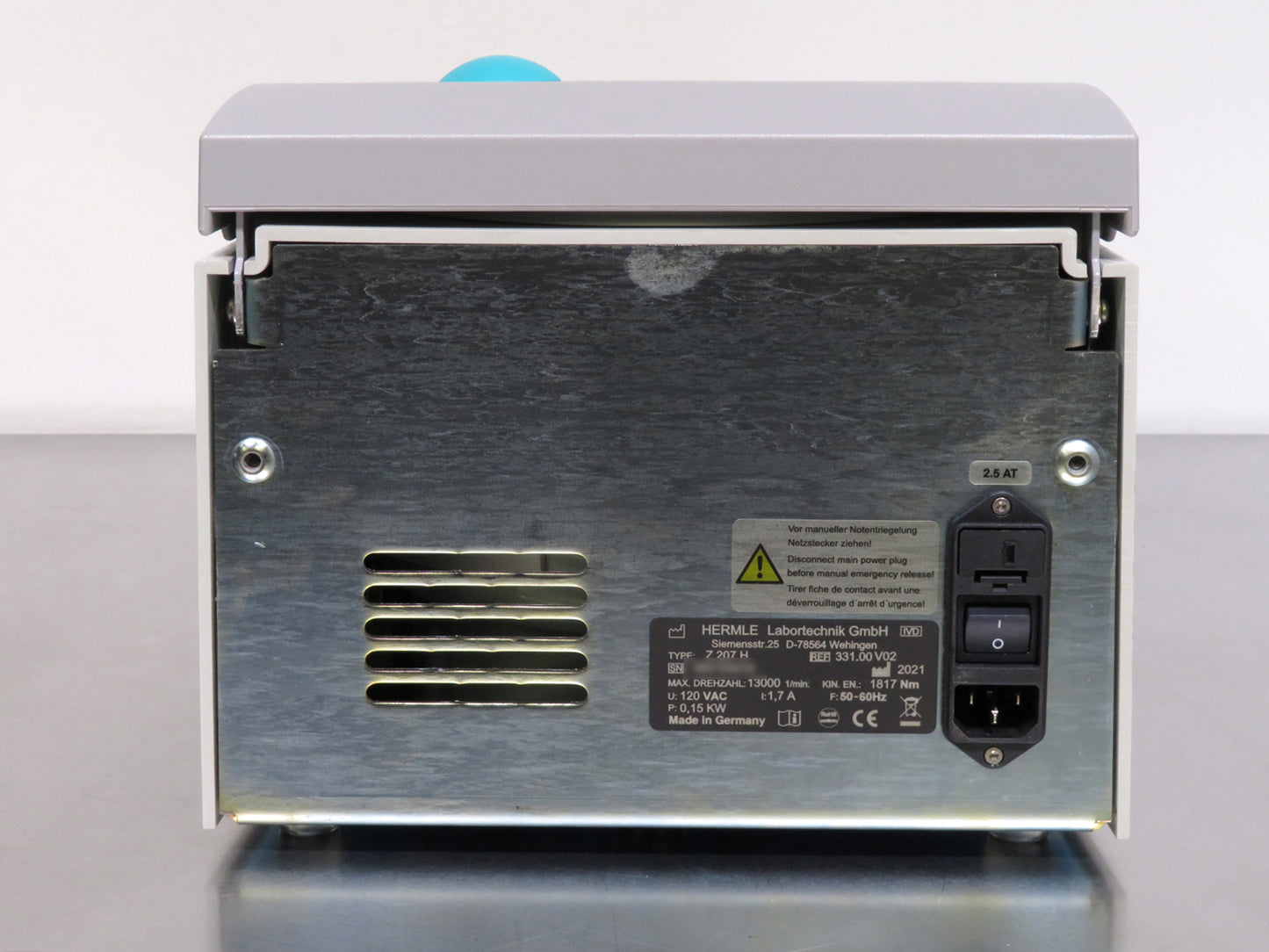

Hermle Z207-H Centrifuge w/ 221.60 V01 Rotor

Maximum Speed
13,000 RPM

Maximum Capacity
24 x capillaries

Maximum RCF
16,058 x g

Features

Compact design ideal for laboratories with limited space
Equipped with a hematocrit rotor accommodating 24 capillaries for efficient sample processing
EZ-Scroll touchpad and advanced microprocessor control for easy operation and precise settings
Programmable operation with storage for up to 99 user defined protocols
Adjustable acceleration and deceleration rates for optimized performance
Customizable end-of-run alarm tone for user convenience
Momentary spin function allows quick spins with the press of a button
Energy-saving sleep mode automatically powers down when idle, reducing energy consumption
Displays rotational speed in RPM or RCF for flexible operation

The Hermle Z207-H Centrifuge w/ 221.60 V01 Rotor is the perfect centrifuge for even the smallest of lab spaces. It is equipped with a hematocrit rotor for 24 x capillaries. Accompanied by Hermle’s easy to use control panel , the unique EZ-Scroll touch pad, gives you ease of control and a modern feel. An advanced microprocessor controls allow for setting/displaying of the rotational speed in either rpm or rcf in increments of 10. In addition to retrieving saved programs, the easy to use front panel can be used to adjust accel/decel rates, run time, and change the end of run alarm tone. There is also a momentary spin function that will run while the button is pressed. Additionally the Hermle Z207-H Centrifuge w/ 221.60 V01 Rotor features a sleep mode to save energy by shutting off after a certain time if not being used while on, which can be toggled on or off easily.

All of our equipment is fully tested to perform at factory specifications before being shipped.

INCLUDED:
The Hermle Z207-H Centrifuge w/ 221.60 V01 Rotor includes:

> Hermle 221.60 V01 Capillary Rotor
> NIST Centrifuge Calibration and Preventative Maintenance Report
> Power Cord
> Operator's Manual
> Full 180 Day Parts and Labor Warranty

Hermle Z207-H Centrifuge w/ 221.60 V01 Rotor Specifications

Maximum Speed	13,000 RPM
Maximum RCF	16,058 x g
Maximum Capacity	24 x capillaries
Temperature Range	N/A
Timer	59 min 50 sec / 10 sec increments 99 h 59 min / 1 min increments
Acceleration Rates	10
Deceleration Rates	10
Drive System	Maintenance Free Induction Motor
Lid Lock	Motor Driven
Display	LCD
Program Storage	99 Programs
Noise Level	< 60 dBA
Dimensions (W x D x H)	11 x 13.7 x 9.5 in. (28 x 35 x 24 cm)
Weight	27.5 lb. (12.5 kg)
Electrical Requirements	120V, 50/60Hz, 1.7A, 150W
Refrigeration	No Refrigeration

Preventative Maintenance Performed on The Hermle Z216 MK Refrigerated Centrifuge

Door Latch Assembly Checked for Full Function
Door Hinges are Checked and Lubed as Needed
Drive Belt is Checked for Rips and Tears and Replaced if Needed
Rotors and O-rings are Lubed as Needed
Lamps and Display are Checked and Replaced if Dim
Line Cord is Checked for Signs of Fray or Damage and Replaced Accordingly
Internal Circuitry is Checked for Faulty/Shorted Components and Replaced Accordingly

Downloads

Technical Specification Download

Operator's Manual Download

Request a Formal Quote

Centrifuge Inspection and Recertification Checklist

Confirm the power supply output voltages match specified requirements for stable distribution to all internal components
Measure and verify voltages at PCB test points to ensure accurate power delivery and circuit integrity
Confirm rotor compatibility with the centrifuge model and check that rotor detection systems recognize the rotor type
Inspect the exterior for any cosmetic or structural damage that could affect performance or safety
Check the door mechanism alignment to ensure secure and smooth opening and closing
Inspect and replace the gas strut with an OEM part to maintain proper door support and safety
Examine the rotor chamber bowl for dents or damage and replace as needed to ensure safe operation
Replace and confirm full functionality of all lid lock switches to maintain secure closure
Inspect and lubricate the door lock mechanism, applying grease to the lid lock rail for smooth operation
Test compressor functionality (if applicable) to ensure proper operation and consistent temperature control
Conduct an 8-12 hour cycle test to validate consistent performance over prolonged use
Confirm rotor motor stability, check for unusual noise, and assess mechanical integrity during operation
Inspect the condensation drain and clear any clogs to prevent moisture buildup in the rotor chamber
Verify RPM accuracy using an NIST-traceable tachometer and perform calibration as necessary
Check the centrifuge error log to ensure zero recorded issues, confirming system reliability

Technician Inspection and Recertification Checklist: Centrifuges

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Confirm power supply output voltages match specified requirements	Completed
Measure and verify voltages at PCB test points for accuracy	Completed
Confirm rotor compatibility and detection for proper identification	Completed
Inspect exterior for cosmetic or structural damage	Completed
Check door mechanism alignment for secure opening and closing	Completed
Inspect and replace gas strut with OEM part as needed	Completed
Examine rotor chamber for dents or damage and replace if necessary	Completed
Replace and confirm functionality of all lid lock switches	Completed
Lubricate door lock mechanism and lid lock rail for smooth operation	Completed
Test compressor (if applicable) for proper operation and cooling	Completed
Run 8-12 hour cycle test to ensure consistent performance	Completed
Check rotor motor for stability, noise, and integrity	Completed
Inspect and clear condensation drain to prevent buildup	Completed
Verify RPM accuracy with NIST traceable tachometer and calibrate	Completed
Check centrifuge error log for zero recorded issues	Completed
